Step-by-Step Guide to Assembling a Gel Blaster Gearbox

Complete Gel Blaster Gearbox Assembly Guide for Beginners

Assembling a gel blaster gearbox can seem daunting at first, but with the right guidance and tools, it becomes a straightforward task that enhances your gel blasting experience. This step-by-step guide will walk you through the entire process, ensuring you have a well-functioning gearbox ready for action.

Disassembling Your Gel Blaster Gearbox: A Step-by-Step Breakdown

Before diving into the assembly, it’s crucial to disassemble your gel blaster gearbox correctly. Here’s how you can do it:

Pro Tip: Keep track of all screws and small parts in a container to avoid losing them during reassembly.

Essential Tools and Parts for a Successful Gearbox Build

To ensure a smooth assembly process, gather the following tools and parts:

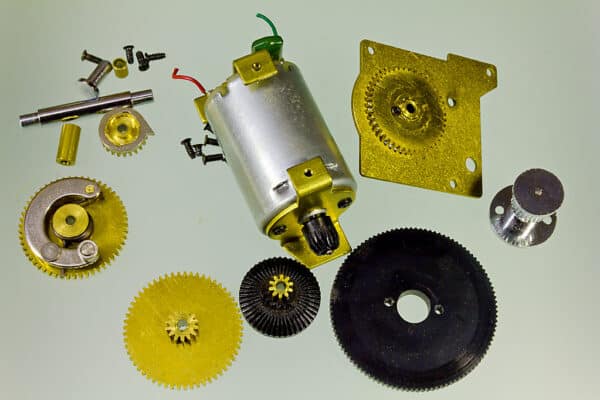

Installing Core Gearbox Components: Motor, Piston, Cylinder

With your tools and parts ready, it’s time to start assembling your gearbox.

1. Install the Motor:
   • Insert the motor into the motor cage.
   • Ensure the motor’s pinion gear meshes correctly with the bevel gear inside the gearbox.
2. Insert the Piston and Cylinder:
   • Place the cylinder into the gearbox shell, ensuring it aligns with the nozzle.
   • Insert the piston into the cylinder, making sure it moves smoothly.
3. Attach the Tappet Plate:
   • Place the tappet plate over the cylinder and secure it with the spring.
   • Ensure the tappet plate moves freely without obstruction.

Master the Art of Shimming Your Gel Blaster Gearbox

Shimming is a critical step in assembling a gel blaster gearbox, ensuring smooth gear operation and longevity. Here’s a step-by-step process:

1. Place the Spur Gear:
   • Insert the spur gear into the gearbox and add shims to achieve minimal play.
   • Rotate the gear to check for smooth movement.
2. Install the Sector Gear:
   • Add the sector gear, shimming it until it aligns perfectly with the spur gear.
   • Ensure there is no excessive play.
3. Shim the Bevel Gear:
   • Insert the bevel gear and add shims as necessary.
   • Check the engagement with the motor pinion gear.

Pro Tip: Use a shimming tool or feeler gauge to measure the gaps accurately.

Troubleshooting Common Gearbox Problems and Solutions

Even with careful assembly, issues can arise. Here are some common problems and their solutions:

1. Gearbox Jamming:
   • Cause: Incorrect shimming or debris inside the gearbox.
   • Solution: Re-check the shimming and clean the gearbox thoroughly.
2. Motor Overheating:
   • Cause: Poor motor alignment or excessive load.
   • Solution: Adjust the motor alignment and ensure proper lubrication of gears.
3. Inconsistent Firing:
   • Cause: Faulty tappet plate or air leaks.
   • Solution: Inspect the tappet plate for damage and check all seals.

Final Assembly and Testing

Once all components are installed and issues addressed, it’s time for the final assembly:

3-Step Process for Smooth Assembly

Gear Up for Gel Blaster Dominance

By following this guide, you’ll master the assembly of your gel blaster gearbox, ensuring a reliable and enjoyable gel blasting experience. For high-quality gel balls, gel blasters, and accessories, visit iHobby Online – your trusted source for all things gel blasting.
